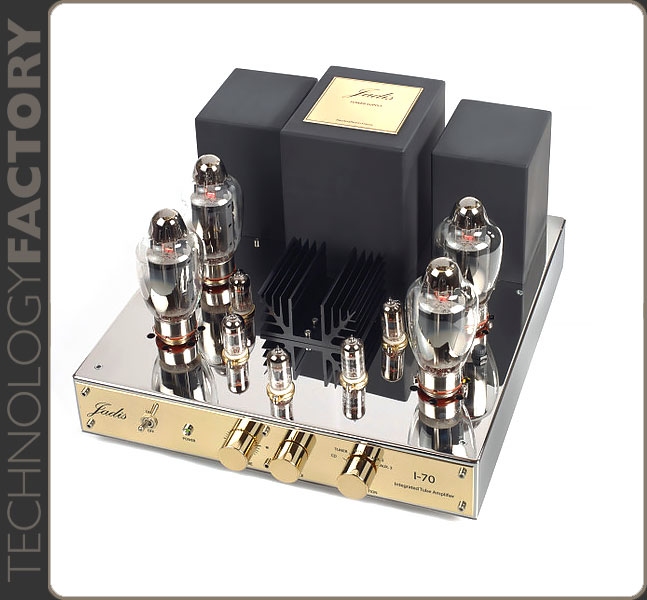

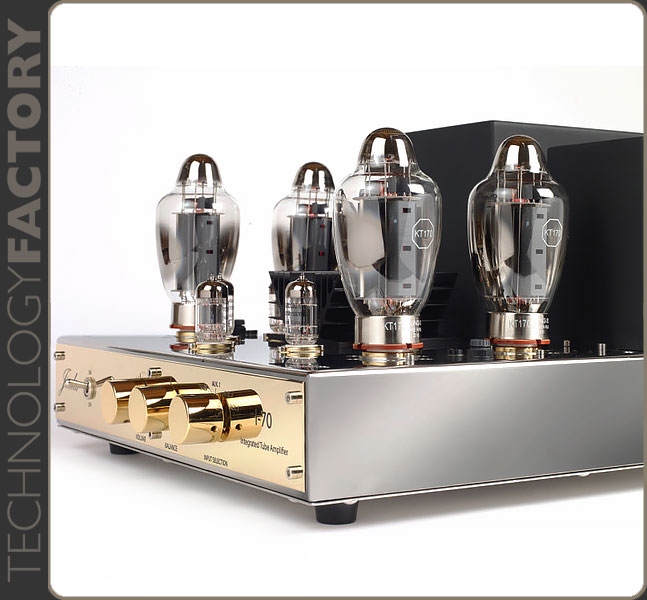

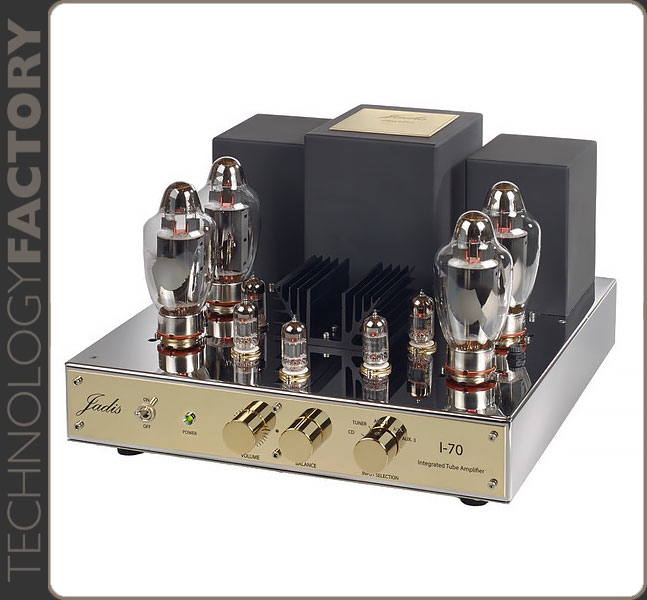

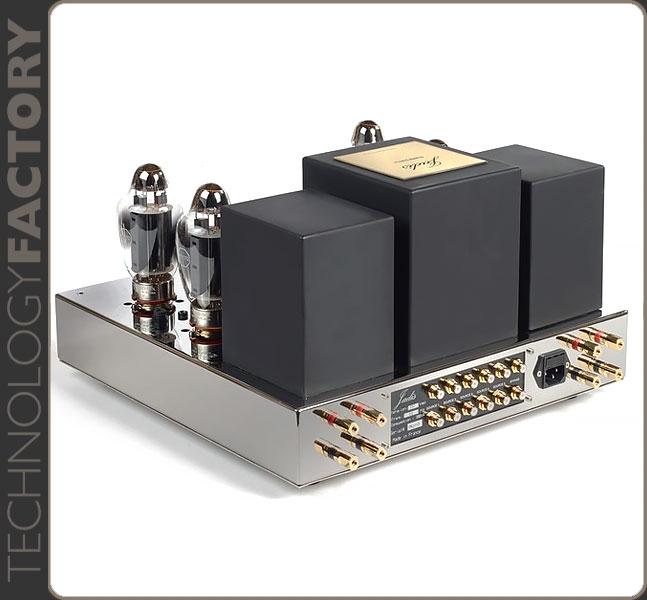

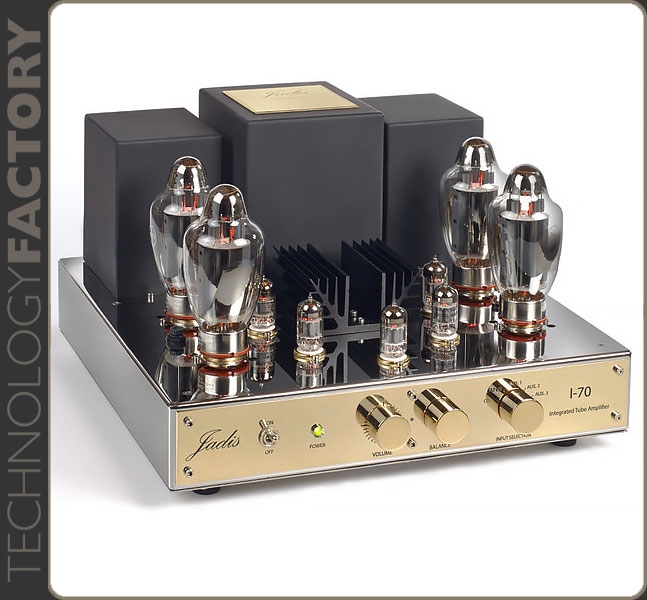

Jadis I70

Jadis I70

Integrated Tube Amplifier 4*KT170 2x50Watt ClassA

Jadis I70
Jadis I70
Jadis I70
Jadis I70
Jadis I70
Jadis I70
13.100,00 Price include 21% VAT Price exclude VAT € 10.826,45
AVAILABILITY1 MONTH

For a long time now , we’ve been thinking about developing a new reference mixing compact design  and increased performances…and KT170 tube comes, giving the starting signal of  I-70 project. This integrated is not only  designed in the pure tradition with point to point wiring and hand made transformer it’s  the first to integrate several features from Jadis mono- block technology. From power supply point of view, power stage has a full separated supply makes it totally independent. Driver and power stage separated  means a power stage not influenced by the other one, so 100 available.  Stabilized filament voltage eliminating inducted noise.
Huge power transformer has been designed to bring dynamic and pulse power. Due to its fully new designed output transformer I-70 works in a single push-pull ultra linear with triple load configuration and  then equipped with two KT170 per channel. KT170 is a powerful tube but we prefer to take advantage of its feature to reduce distortion instead of simply   focusing on its power, by choosing a functioning point different than usual.

Listenning
I-70 is rich in sensation and full of emotions. Each register shows details, accuracy and depth. This integrated will move you by its shimmering tones and structured soundstage.

Specifications
- Bias: Automatic
- Power: 2x60 W
- Input type: 5 lines, 1 Bypass output, 2 speaker output ( for bi-wiring)
- Bandwidth: 10Hz à 36KHz
- Sensibility: 150 mV
- Number of blocks: 1
- Tubes list: 4xKT170, 2xECC83, 3xECC82
- Dimensions: 40 x 40 x 25.5 cm
- Weight: 30 KG
- Consumption: 500 VA
