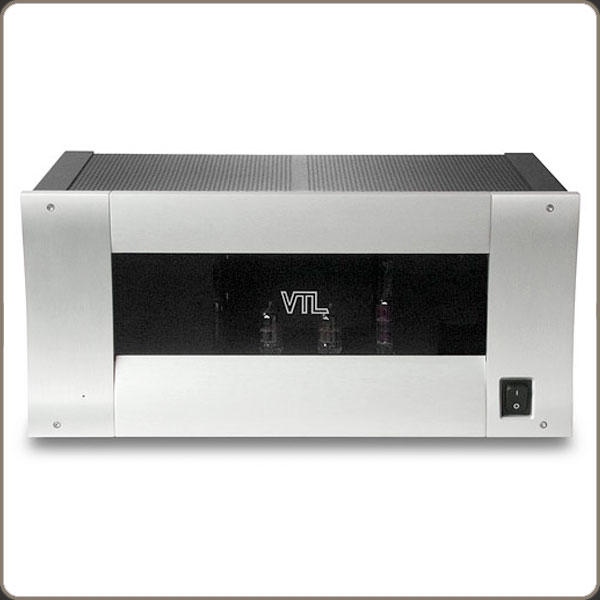

VTL ST-150

Performance Stereo Power Amplifier 2*150Watt

AT REQUEST

AVAILABILITY: 1 MONTH

FINISH

Over 150 watts per channel (300 watts of stereo power), this stereo amplifier offers superb musical clarity and plenty of power in one compact chassis. Utilizing the finest quality parts, and entirely hand built by experienced craftsmen, the ST-150 is VTL’s offering of a high value, high power stereo tube amplifier. The noted VTL quick, clean, musical sound and exceptional bass punch is delivered here by the 6550 tubes. Exceptionally well suited to triode operation, yet they are also very dynamic and fast in tetrode mode, these VTL amplifiers are well-suited to smaller electrostatic panels and dynamic speakers not requiring high current. For commanding performances on the midrange and clarity on the top, VTL wins hands down. In triode mode, the amp is best suited to speakers with an efficiency of 92dB/1W/1m or higher.

Features

- High energy storage power supply >200 joules

- VTL proprietary output transformer

- Very low-noise floor with specially designed grounding scheme

- Tetrode/Triode Switchable

- 150 watts per channel in tetrode

- 70 watts per channel in triode

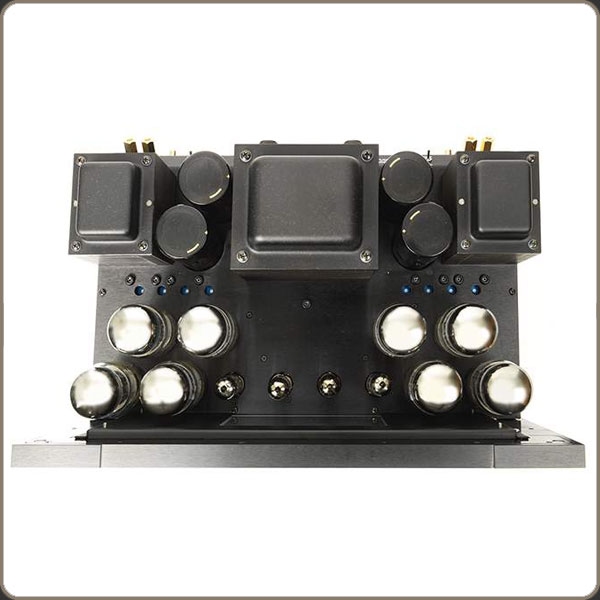

- 4 6550 tubes per channel with individual bias setting for each tube

- Audiophile grade film and foil caps used in the signal path

- Extruded aluminum front panel with luxurious, modern look — black and silver options available

Specifications

- Vacuum Tube Complement 8 x 6550, 2 x 12AT7, 2 x 12BH7

- Output power Tetrode: 120W, Triode: 60W 20Hz – 20kHz <3% THD Into 5Ω

- Input sensitivity @ 150W 100V = 0.880V; 120/240 = 1.0V

- input impedance 130KΩ

- Output Load Range 2Ω – 8Ω

- S/N Ratio -95dB, 120Hz

- Power Consumption Idle = 240W, Full Power = 800W

- Primary Mains Fuse Rating 100V = 15A Ceramic Slo Blo, 120V = 15A Ceramic Slo Blo, 220/240V = 8A Ceramic Slo Blo

- B+ Fuse Rating 1A fast acting ceramic 600V

- Dimensions W x D x H 19 x 12 x 9 inches (48 x 30 x 23 cm)

- Weight 85lbs (38.6Kg), 110lb (50Kg) packed
